RFID and barcode are asset-tracking technologies, they use different technologies.The choice between barcode and RFID technologies is crucial for companies looking to improve their efficiency in warehouse management, production and supply chain management.

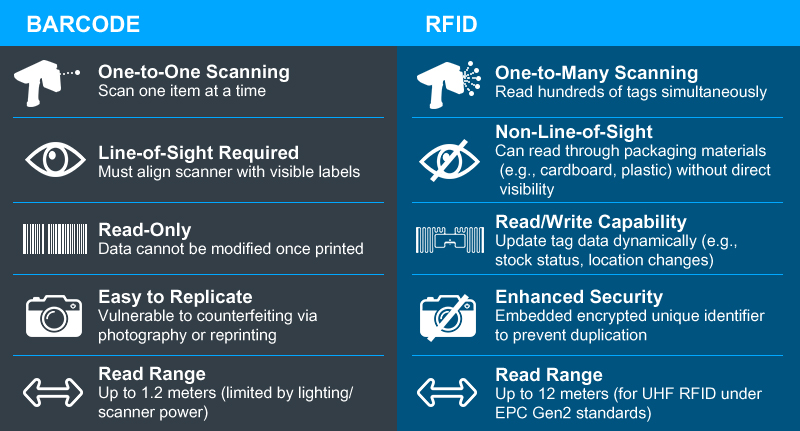

The differences at a glance

• Barcode technologyProvides a cost-effective and easy-to-integrate solution for tracking objects, but relies on direct lines of sight and has limited data capacity.
• RFID technologyAllows tags to be read without direct view and from a greater distance, can store and update more data.

In-depth comparison between RFID and barcode

What is RFID?

RFID (Radio Frequency Identification) uses electromagnetic fields to automatically identify and track tags attached to objects. It is a form of wireless communication that enables data transmission from an RFID tag to an RFID reader device.Due to its ability to read over long distances and its high storage capacity, RFID offers many advantages.

RFID system consists of three main components: RFID tag, RFID reader, and a backend system.

RFID tags are attached to or embedded within assets that need to be tracked. The microchip stores information about the asset, such as its identification number, serial number, etc. The tags contain electronically stored information that is captured wirelessly by RFID readers, which significantly improves data capture and asset tracking, as access is usually seamless during the ongoing process.

RFID readers, also known as interrogators, are used to read the information stored on RFID tags.

The backend system is responsible for processing and managing the data collected by the RFID readers. It includes software and databases that store and analyse the information received from the RFID tags.This system can provide real-time tracking, inventory management, theft control, etc.

Advantages of RFID

• Automatic Identification and Tracking

Efficiency: RFID enables automatic identification of objects, reducing the need for manual scanning or data entry.

Real-time Tracking: Assets can be tracked in real-time, improving inventory management and reducing loss.

Reusability: Stored data on RFID tags can be updated or rewritten.

No direct line of sight required RFID readers can read tags through materials and from a greater distance, which increases operational flexibility. Transponders can be integrated invisibly into products or labels.

• Increased Accuracy

Reduced Human Error: Automation minimizes mistakes associated with manual processes, leading to more accurate data collection.

Consistent Data: RFID systems provide consistent and reliable data, enhancing decision-making.

Efficiency in mass scanning Several hundred tags can be read simultaneously, which speeds up processes considerably. Manual separation is not necessary!
Additional process information directly from the reading process: in addition to basic RFID reading, newer RFID reading systems can also detect the direction of movement of the tagged objects without additional sensors. This makes it easy to track the process.

• Enhanced Security

High security: The stored data can be encoded and thus protected against unauthorized access and falsification.RFID stores information on electronic chips that can be protected from external environmental influences and are highly resistant. RFID tags have a long service life of up to 10 years.

• Improved Inventory Management

Real-time Visibility: Businesses gain visibility into inventory levels, reducing overstock and stockouts.

Various readable materials: RFID can read paper, wood and plastic, barcodes are limited to paper.

• Cost Savings

Labor Reduction: Automation reduces the need for manual labor, leading to cost savings in staffing.

Reduced Losses: Enhanced tracking and security help minimize losses from theft or misplacement.

Extended data capacity Stores more data and can be updated or rewritten. This is also used to mark status changes directly on the object

Combination RFID systems can be usefully combined with barcode systems.

Limitations of RFID

• Limited read range, requiring close proximity between RFID reader and tags.
• Susceptibility to interference: Interference from metal or liquids can affect RFID performance.
• Costs: Higher initial investments for RFID readers, antennas and transponders can be a hurdle, especially for smaller companies. UHF RFID, with its higher frequency range at around 900 MHz, has the advantage of smaller antenna structures and therefore low-cost solutions for transponders.
• Complexity of the implementation:Comprehensive planning and system redesign is often required, which experienced system integrators have at their disposal.

What is a Barcode?

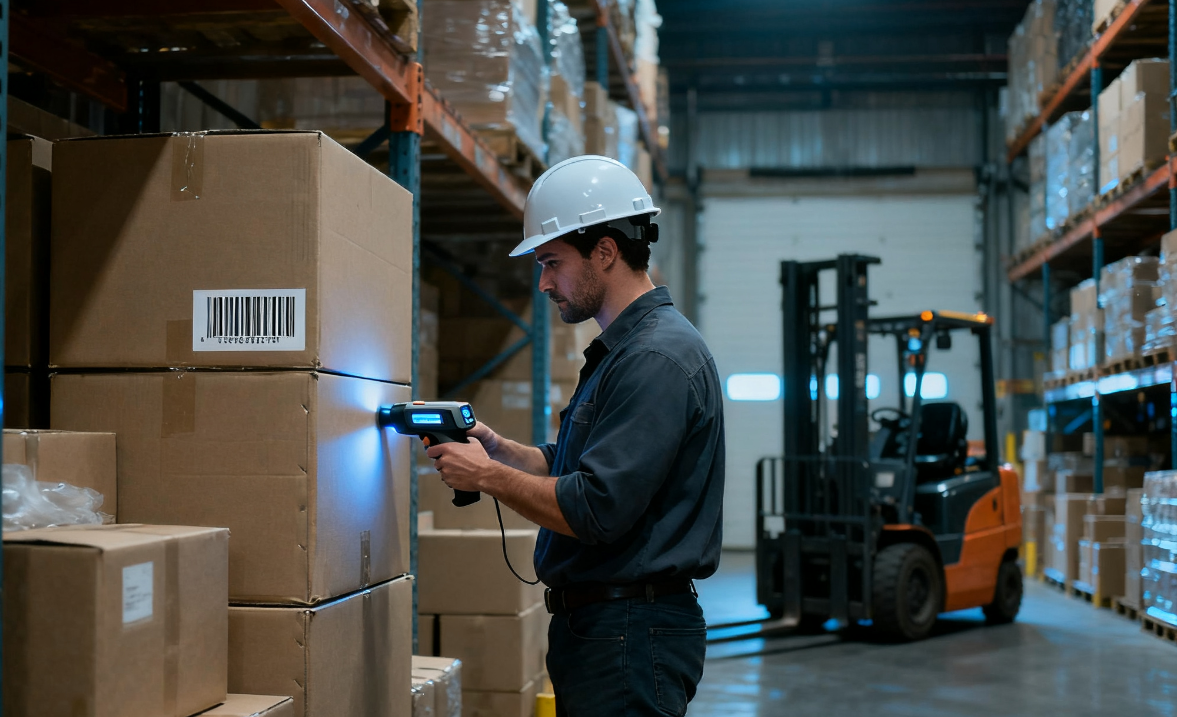

A barcode is a machine-readable code. It comprises a series of black and white bars of varying widths and spacing enclosed within a square or rectangular frame.Barcode technology uses a barcode scanner, which emits light onto the barcode and measures the reflected light.

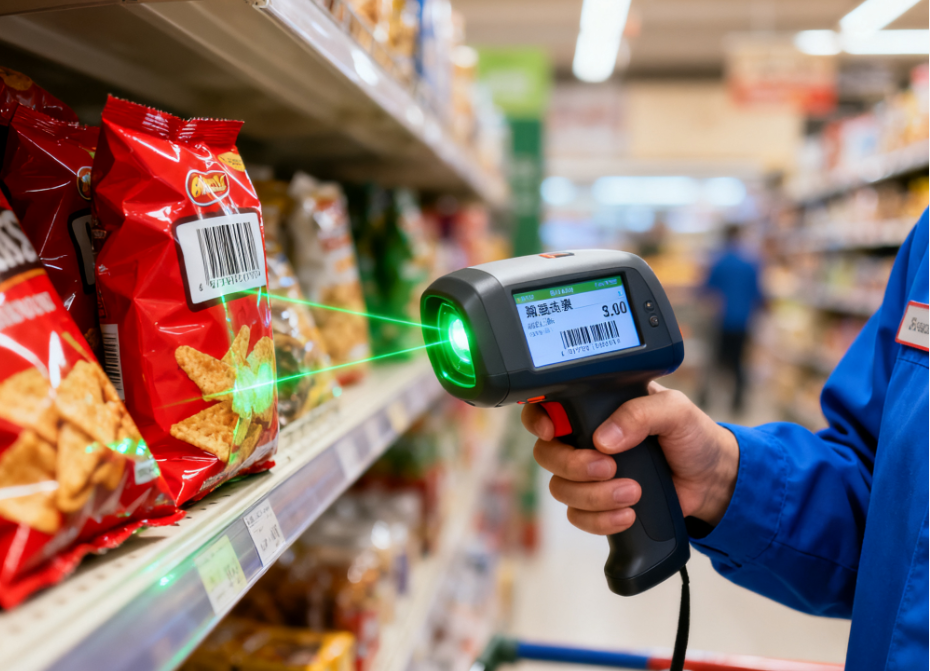

1. Barcode scannersemit light, typically from an incandescent bulb or laser, onto the barcode labels.
2. The black lines on the barcode absorb light, while the white spaces reflect light back.
3. A super-sensitive light detector in the scanner captures the reflected light.
4. The scanner measures the intensity of the reflected light, converting it into electrical signals.
5. The electrical signals are then processed and interpreted as binary data, with black lines representing “1” and white spaces representing “0”.
6. The resulting binary data is sent to inventory management software or a computer system.
7. The software receives and decodes the binary data, transforming it into meaningful information about the product, such as its identification number or other relevant details.

Advantages of barcode technology

• Cost efficiency: Barcodes are easy and inexpensive to produce and do not require complex hardware.
• Simple integration: Largely compatible with many industries due to standardized formats.
• Fast scanning: Accelerates operational processes through fast data acquisition.
• Simple operability: Barcode scanners are easy to use and require no special training.

Limitations of BARCODE

• Direct line of sight requiredScanners must physically see the barcode in order to read it, which limits flexibility.
• Separation necessary: Scanners can only read one barcode at a time and all tagged objects must be separated beforehand.
• Susceptibility to damagePhysical damage or soiling can make a barcode unreadable.
• Limited data capacityBarcodes hold less data compared to RFID tags.
• Data cannot be rewrittenIf a new label is required in the process, e.g. when the objects are handed over, a new barcode must be printed.
• Lack of securityThanks to their simplicity and standardization, barcodes can be copied without great effort. Thanks to the technical development of cell phone cameras, every cell phone owner can also read the barcode.
• Machine readoutonly works if the code is always in the same place.

Which is Better RFID or Barcode?

The choice between RFID and barcodes depends on the specific needs and requirements of the application.

Barcodes are generally more cost-effective and easier to integrate, while RFID offers advantages in terms of speed, range, and data capacity.

The choice depends on the application’s specific needs, such as the required reading range, data capacity, environmental conditions, and budget.

Conclusion

Barcodes offer a cost-effective solution for simple identification tasks, while RFID technology can offer significant benefits in demanding environments despite higher costs and implementation complexity. In particular, RFID should be considered for managing complex inventories and tracking in dynamic environments. However, they offer long-term benefits through automation, serialization and dynamic data capture.
