UCODE X UHF Blank Label
The NXP UCODE X is NXP's highest-performance RAIN RFID tag chip, setting a new benchmark in read/write sensitivity, encoding speed, and ultra-low power consumption. Fully compliant with GS1 EPC Gen2v2.1 and ISO 18000-6C standards, UCODE X delivers exceptional performance on small and challenging items, making it the ideal choice for next-generation item-level tagging across retail, logistics, healthcare, and industrial applications.

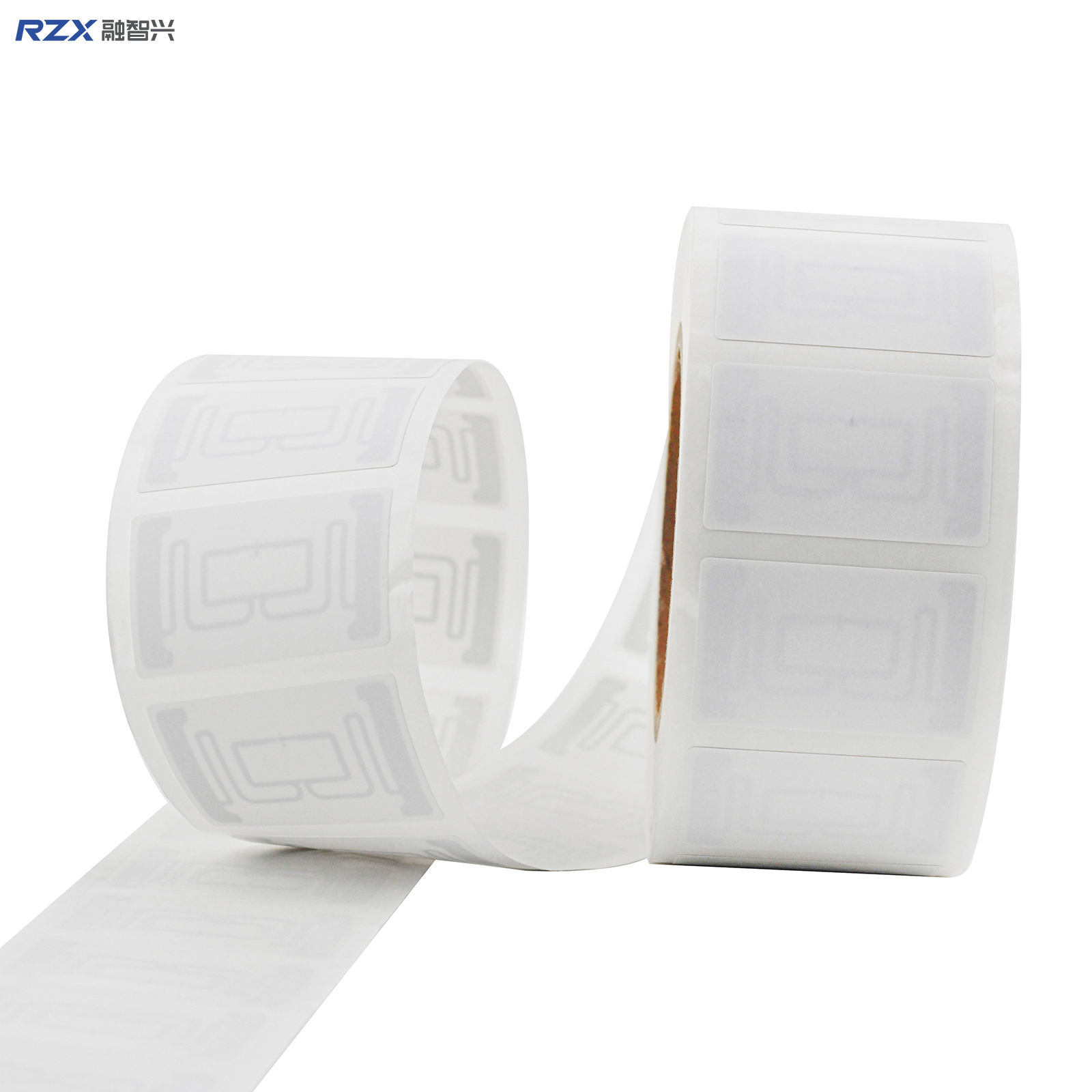

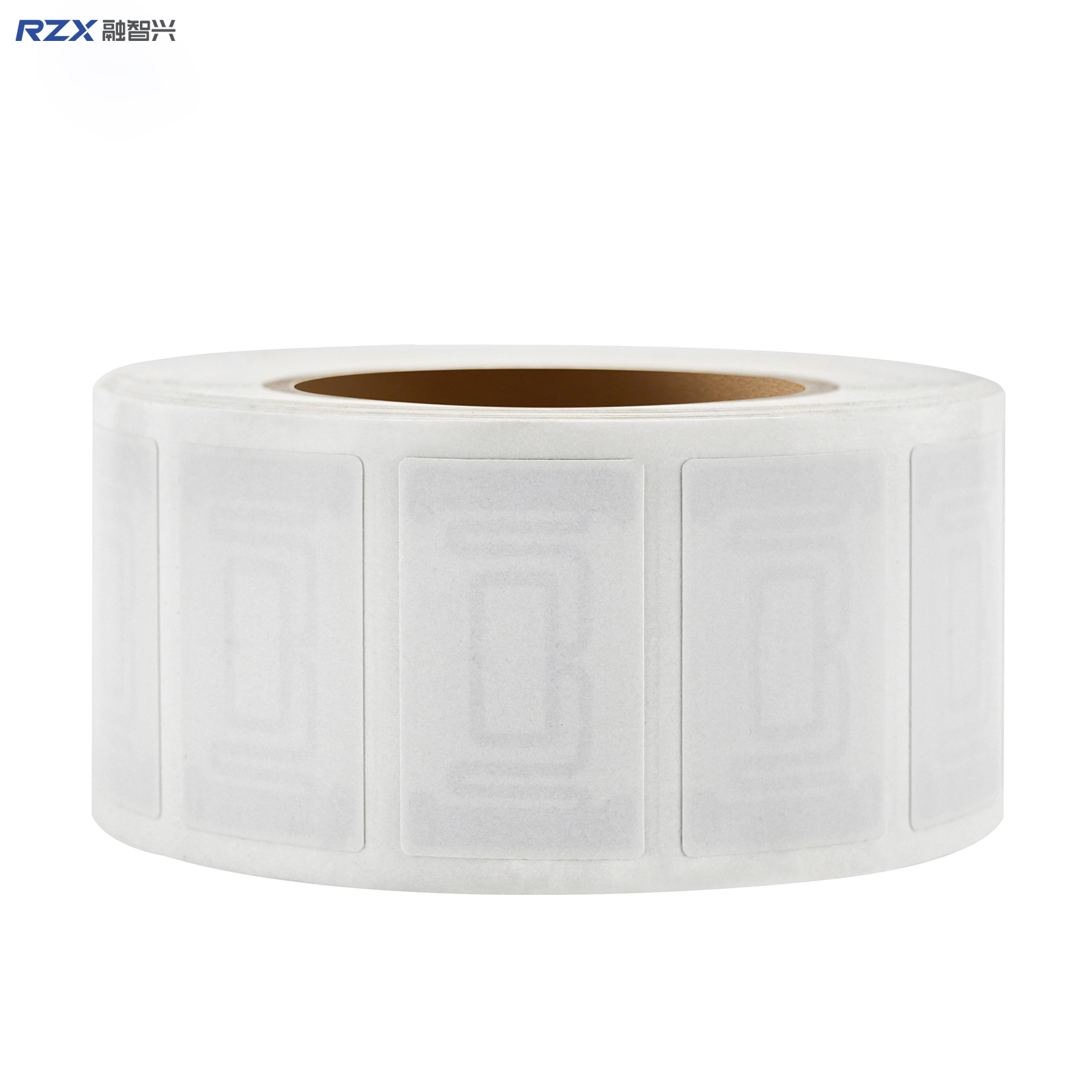

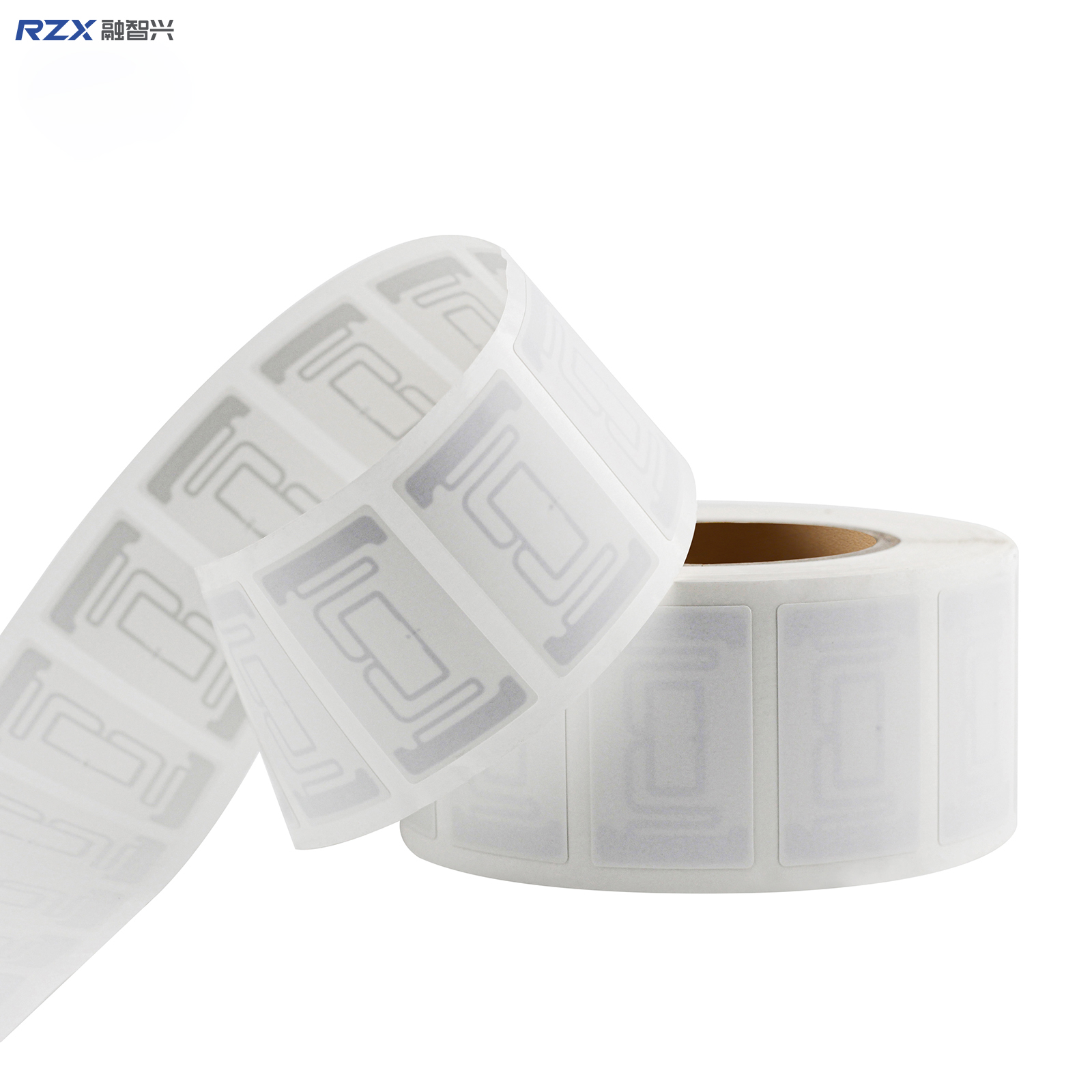

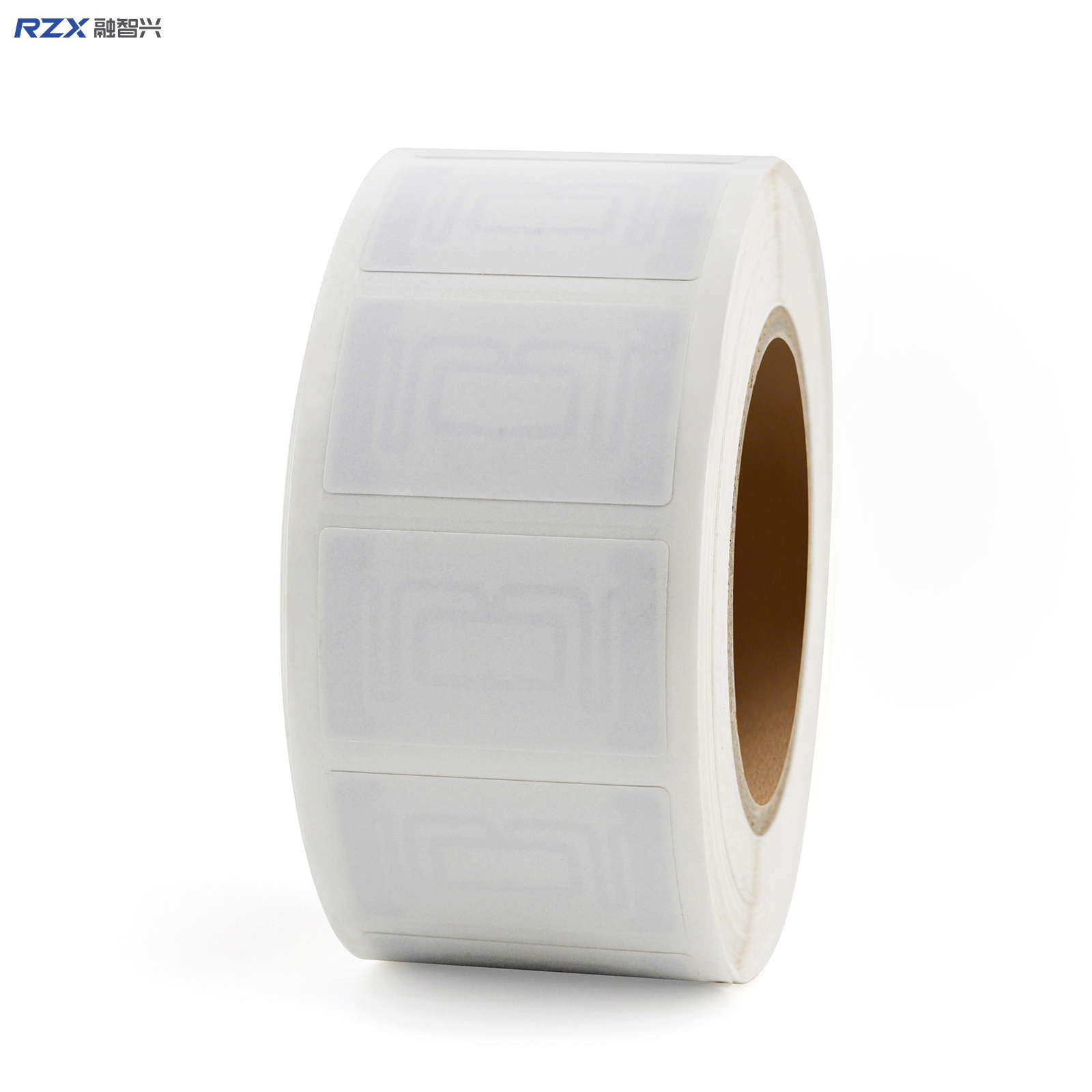

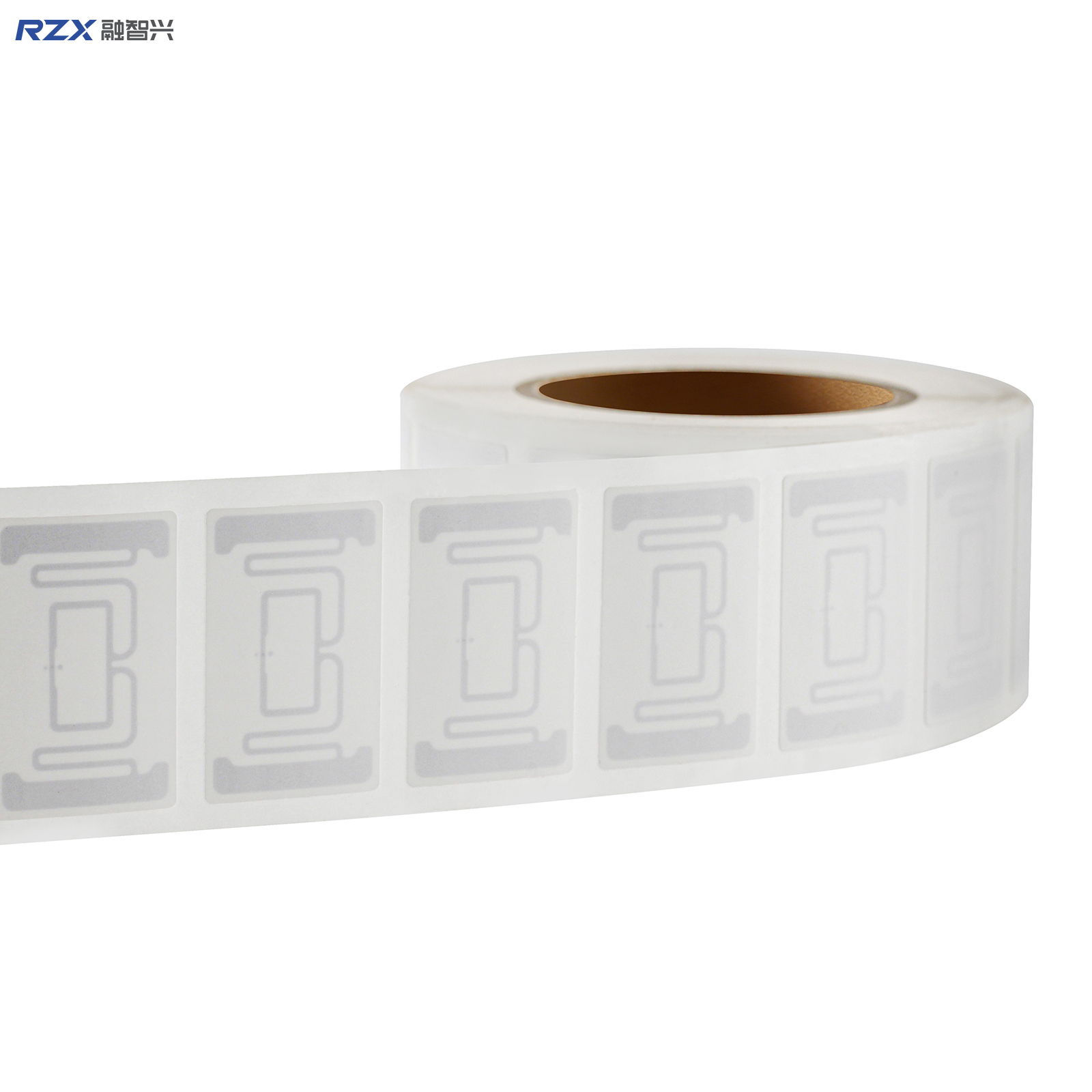

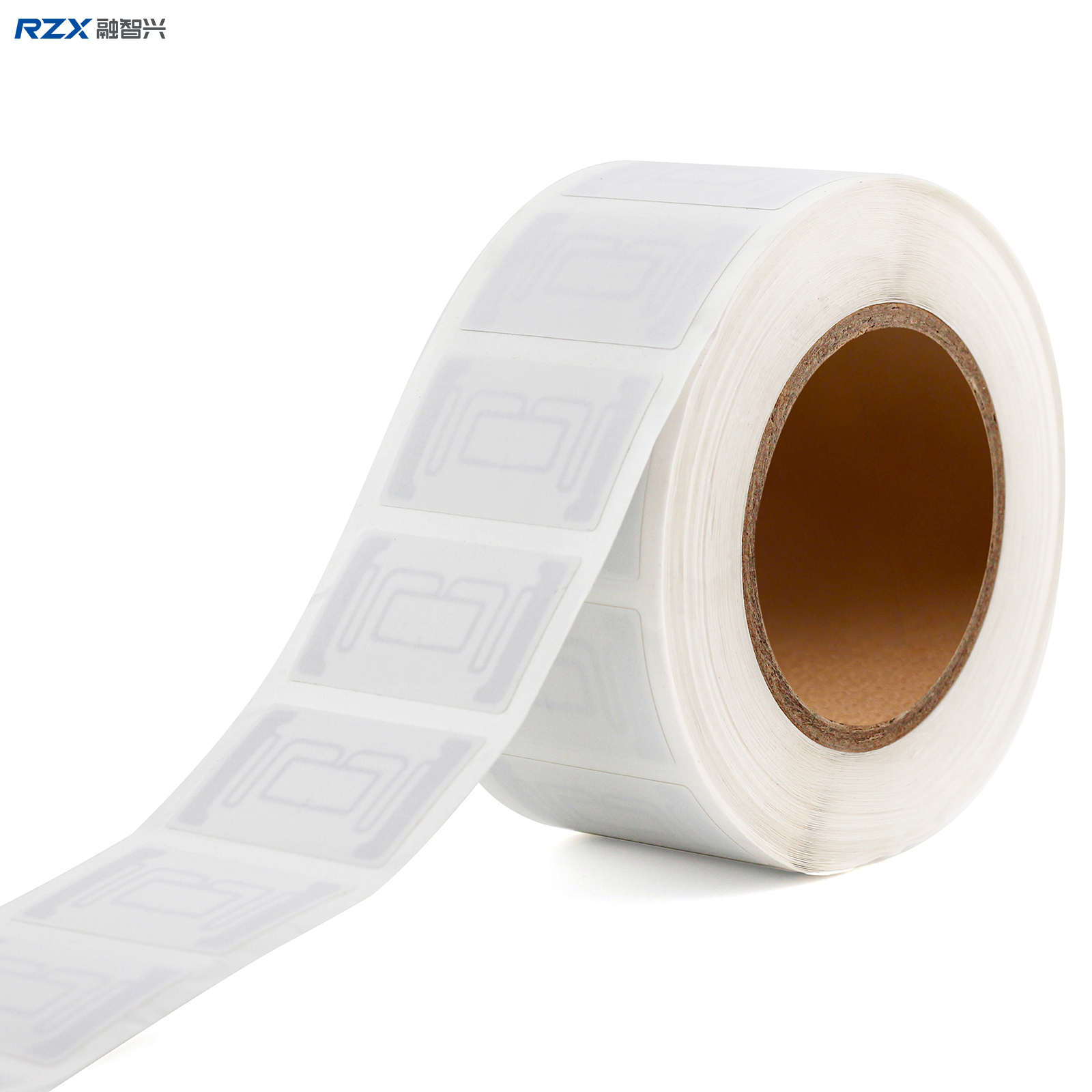

Our UCODE X white labels are manufactured with a PET substrate and aluminum-etched antenna, finished with a white surface printable face stock and permanent adhesive backing on release liner. Available in multiple antenna and label form factors, they are suitable for high-speed roll-to-roll conversion and direct thermal / thermal transfer printing.
Related products
Ultra-High Frequency (UHF) RFID tags operate in the 860 MHz -- 960 MHz band, offering extended read range, fast data transmission, and bulk reading capability via anti-collision algorithms. The UCODE X chip takes this further with industry-leading --26.2 dBm read sensitivity and 32-bit write in just 1.9 ms, enabling faster inventory counts, higher accuracy on dense items, and reliable reading even with compact antenna designs.
With configurable EPC memory (96 -- 208 bits) and optional user memory (0 -- 32 bits), UCODE X provides the flexibility to balance EPC length, regulatory compliance (e.g. FDA FSMA 204), and on-tag data storage according to your deployment needs. Built-in Gen2v2 Untraceable privacy commands ensure consumer privacy protection in retail and public-facing environments.
Key Features
Chip: NXP UCODE X -- Next-generation RAIN RFID tag IC
Protocol: GS1 EPC Gen2v2.1 / ISO/IEC 18000-6C
Frequency: 860 -- 960 MHz (Global UHF band)
Read Sensitivity: --26.2 dBm (industry-leading)
Write Sensitivity: --23 dBm
Write Speed: 32 bits in 1.9 ms (fast encoding)
Security: Access & Kill passwords, LOCK / PERMALOCK commands, Memory Safeguard
Privacy: Gen2v2 Untraceable -- full or partial EPC/user memory hiding
Power: Ultra-low power consumption -- enables smaller antenna designs
Sustainability: Reduced aluminum usage, smaller inlay footprint, lower carbon emission
Technical Specifications
|
Parameter |
Description |
Remarks |
|
Chip |
NXP UCODE® X |
NXP Semiconductors |
|
Protocol |
GS1 EPC Gen2v2.1,ISO 18000-6C |
RAIN RFID |
|
Frequency |
860 -- 960 MHz |
Global UHF band |
|
Read Sensitivity |
--26.2 dBm |
Industry-leading |
|
Write Sensitivity |
--23 dBm |
-- |
|
Write Speed |
32 bits / 1.9 ms |
Fast encoding |
|
EPC Memory |
96 -- 208 bits |
Configurable |
|
User Memory |
0 -- 32 bits |
Optional, configurable |
|
TID |
96 bits |
Factory-locked, unique |
|
Base Material |
PET |
-- |
|
Antenna Process |
Aluminum Etching |
-- |
|
Face Stock |
White PET |
Printable surface |
|
Release Liner |
Glassine paper |
-- |
|
Operating Temperature |
--40 Degree C to +85 Degree C |
Industrial grade |
|
Write Endurance |
100,000 cycles |
-- |
|
Security |
Access / Kill passwords, LOCK, PERMALOCK, Memory Safeguard |
-- |
Application Scenarios
* Retail and Fashion -- Item-level inventory management, loss prevention, self-checkout, returns and warranty tracking. UCODE X delivers fast, accurate reading even on densely packed apparel and accessories.
* Logistics and Supply Chain -- Warehouse automation, shipping and receiving verification, end-to-end traceability. The --26.2 dBm sensitivity ensures reliable reads across conveyor belts and dock doors.
* Pharma and Healthcare -- Medical asset tracking, drug and consumables inventory, expiration date management, production mix-up prevention. Configurable EPC memory supports regulatory compliance such as FDA FSMA 204.
* Cosmetics and Food -- Tagging small, RF-challenging items. UCODE X compact antenna support and ultra-low power consumption make it ideal for cosmetics, food packaging, and beverage containers.
* Asset Management -- Corporate fixed-asset tracking, IT equipment audit, tool lifecycle management. Gen2v2 privacy features protect sensitive asset data.
* Smart Manufacturing -- Work-in-progress tracking, quality control checkpoints, production batch traceability. Fast write speed (1.9 ms) supports high-speed production lines.
