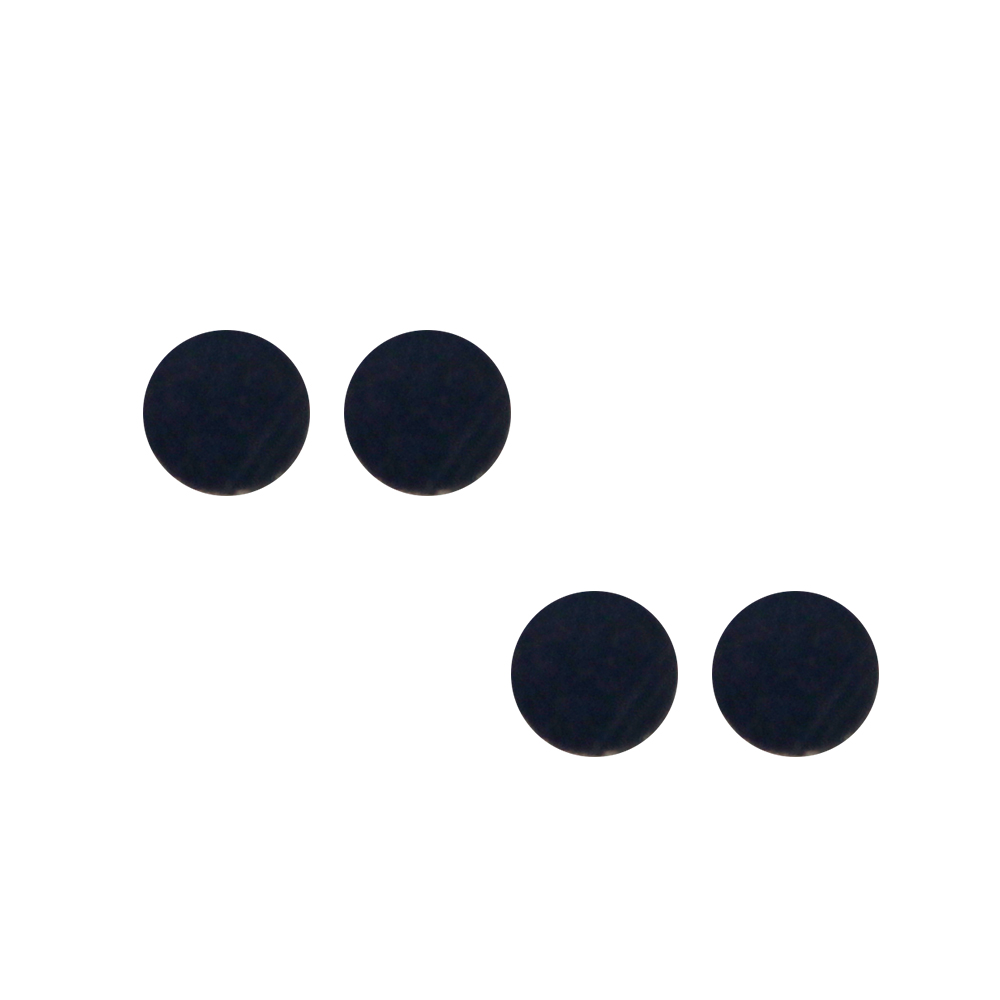

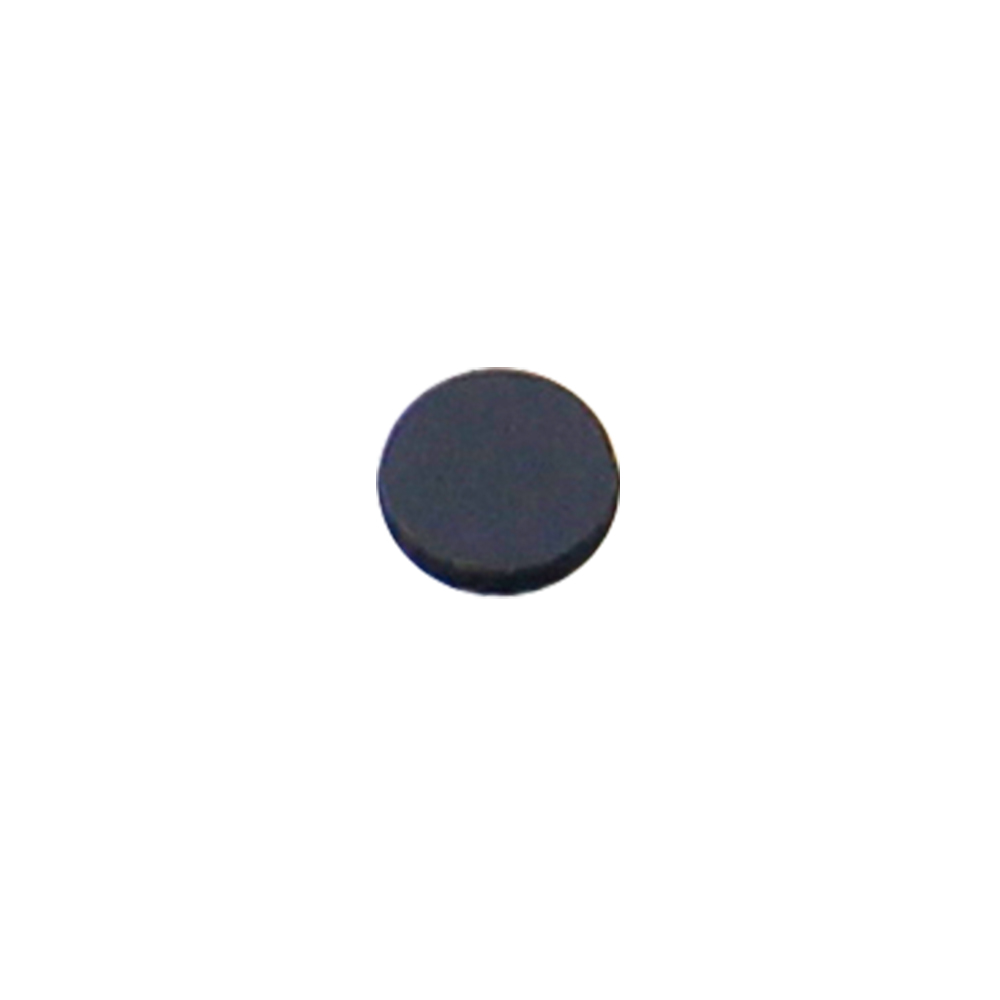

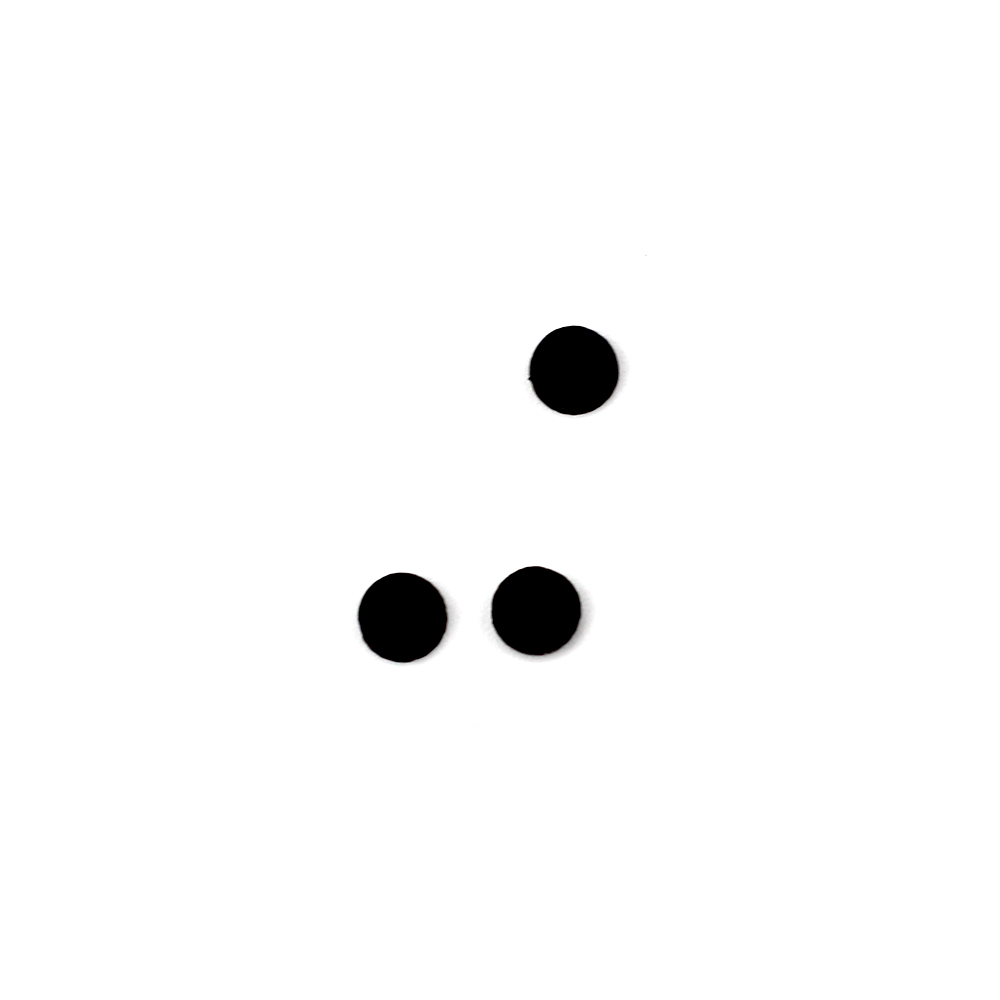

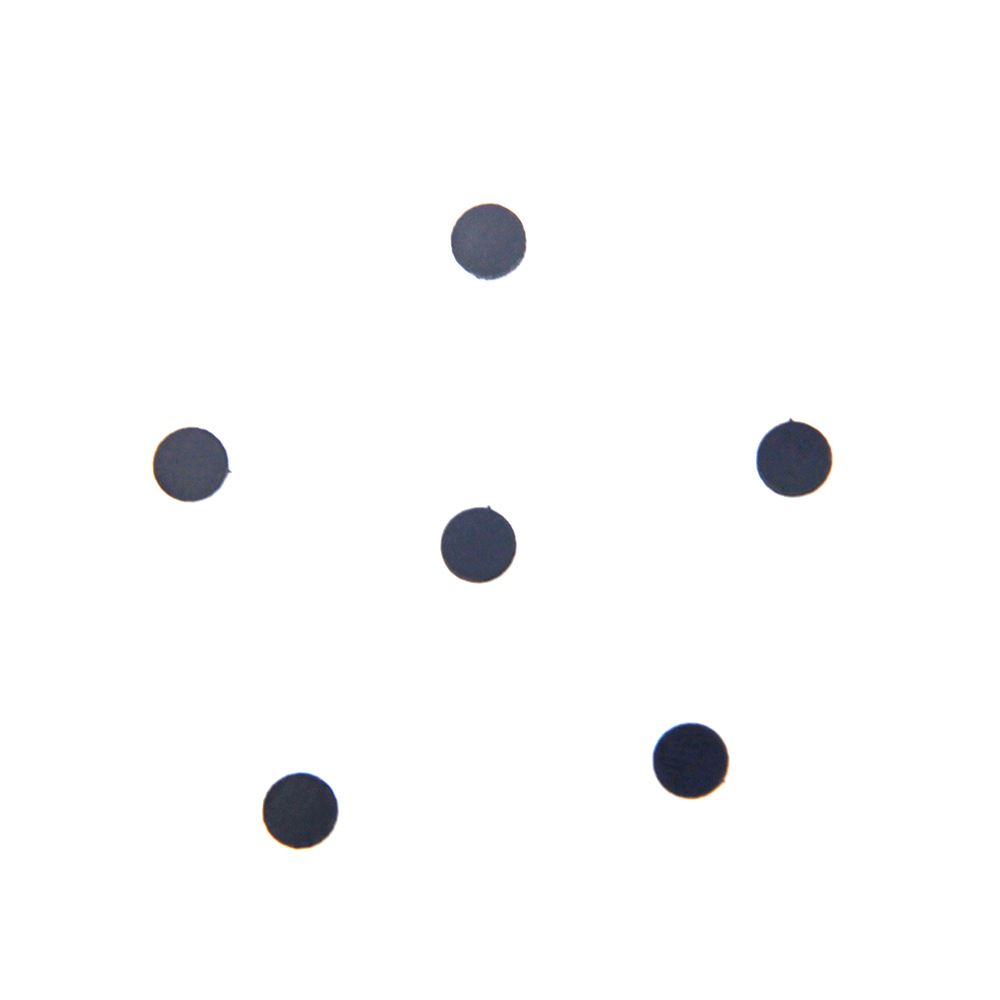

Laundry Tag（POD-M830）
Features：
Tiny size UHF chips, can used for different RFID applications to do the custom rfid products
Categories:
Share
Related products
Description
MAIN FEATURES:
- Weatherproof
- Mini size
- high-pressure resisitant
- temperature resistance -45 ~ 200°C
- can be coupled to custom antenna use
| project | describe | Remark | |
| chip | M830 | ||
| Encapsulant | Epoxy resin | Inside with antenna | |
| Antenna manufacturing method | Copper etching | ||
| Standards compliant | ISO/IEC 18000-6C GS1 Class1 Gen2 |
||
| IC Memory | EPC | 128bits | |
| User | 0 | ||
| TID | 96bits | ||
| Access Password | 32bits | ||
| frequency | Global 902-928MHz | ||
| Data Retention | 10 years | ||
| Operating Mode | Passive | ||
| reading distance | 5-18CM | ||
APPLICATIONS:
- 2nd development for RFID solutions
- can be coupled for custom antenna, like custom RFID laundry tags etc
